Question 1

How do I decide between selective, push back, and drive-in pallet racking?

Accepted Answer

It comes down to SKU count, pallet depth per SKU, and how fast product turns. Selective racking makes sense when you need every position picked directly; push back and drive-in pay off once you are storing several pallets of the same item and want density instead of aisles. In our free warehouse design consultation we model both against your actual pallet counts so you can see the position gain before you commit.

Question 2

How much additional storage capacity can a redesigned layout realistically add?

Accepted Answer

Most Greater Philadelphia warehouses we lay out gain 20 to 40 percent more pallet positions in the same footprint, usually by recovering vertical space and converting some selective rows to higher-density systems. The gain depends on clear height, forklift type, and how uniform your pallet profiles are. We give you the position count both ways so the decision is based on numbers, not guesswork.

Question 3

What does your warehouse design consultation actually include?

Accepted Answer

You send pallet dimensions and weights, clear height, forklift type, and a building footprint. We come back with a CAD layout, pallet position counts, aisle widths matched to your equipment, and itemized pricing. There is no charge for it, and we will run a second or third version if you want to compare configurations.

Question 4

How does forklift equipment affect the racking layout you recommend?

Accepted Answer

Aisle width and maximum lift height are set by your trucks, not by the rack. Sit-down counterbalanced trucks generally need 11 to 13 foot aisles, reach trucks work in 8 to 10, and turret trucks go narrower still. We design around the fleet you already run, and if you are considering an equipment change we will show what the layout looks like both ways.

Question 5

Can you expand or reconfigure the pallet racking we already have?

Accepted Answer

Yes, and it is a large part of what we do. We identify your existing uprights and beam connectors first so nothing incompatible gets mixed into a row, then tie new sections in or reconfigure beam levels to fit changed pallet profiles. Reusing sound steel and adding only what you need is usually the fastest path to more capacity.

Question 6

How are beam capacities and load ratings determined for my product?

Accepted Answer

Capacity is a function of beam length, beam profile, and the number of pallets per level, rated against your heaviest loaded pallet, not your average. We size to the worst case and post load capacity data for each configuration so your team knows the limits. If your product mix changes later, send us the new weights and we will confirm the existing beams still work.

Question 7

What lead times should I plan for on a full warehouse racking project?

Accepted Answer

Standard industrial pallet rack components are typically available quickly from stock, and full installations are usually scheduled within one to two weeks of an approved layout. Specialty systems such as pallet flow or structural cantilever run longer. We give you a firm schedule with the quote so you can plan receiving and inventory moves around it.

Question 8

Do you work with new construction and warehouse relocations?

Accepted Answer

Yes. For a move or a new building, we lay out the racking against the slab and column grid before you sign so you know the real pallet capacity of the space. We also phase installs to match your move-in schedule, which keeps product flowing while rows go up section by section.

Question 9

Why should a Philadelphia-area company work with you instead of ordering online?

Accepted Answer

Because a rack order is only as good as the layout behind it. We serve warehouses across Philadelphia, Camden, King of Prussia, Bensalem, and the surrounding region, so we answer the phone, respond fast when something changes mid-project, and stay involved after the install. Customers stay with us for the service more than the steel.

Question 10

What happens if a forklift damages an upright after installation?

Accepted Answer

Call us and we will get replacement uprights, beams, or repair components out to you. A damaged section can normally be swapped without dismantling the row. We also point out where guarding or end-of-row protection would prevent the same hit from happening again.

Question 11

Do you offer new and used pallet racks?

Accepted Answer

We lead with new pallet rack because you get documented load capacities, matched components, and warranty coverage, which matters when your layout is engineered to specific weights. If budget is the driving constraint we will walk through used options honestly and tell you where the tradeoffs land.

Industrial Pallet Racks & Warehouse Racking Solutions in Philadelphia, PA

Pallet Rack Systems for Every Warehouse Need

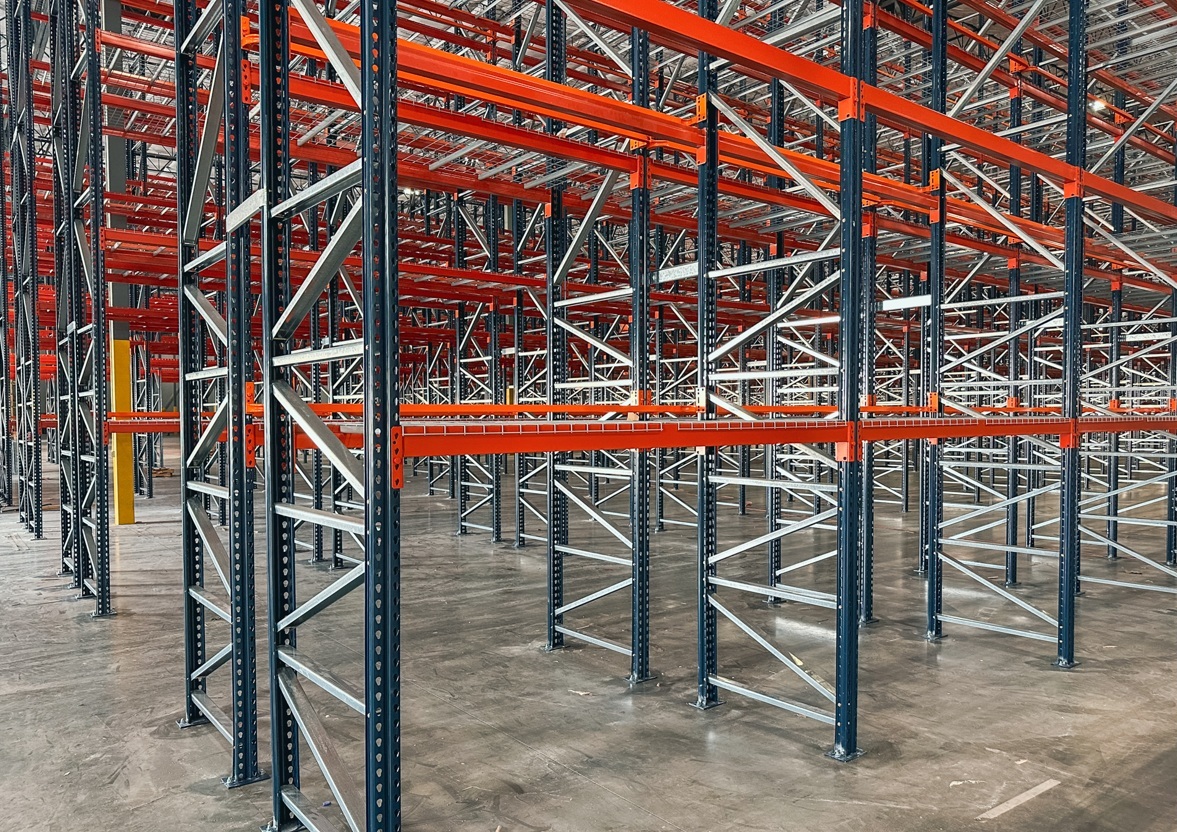

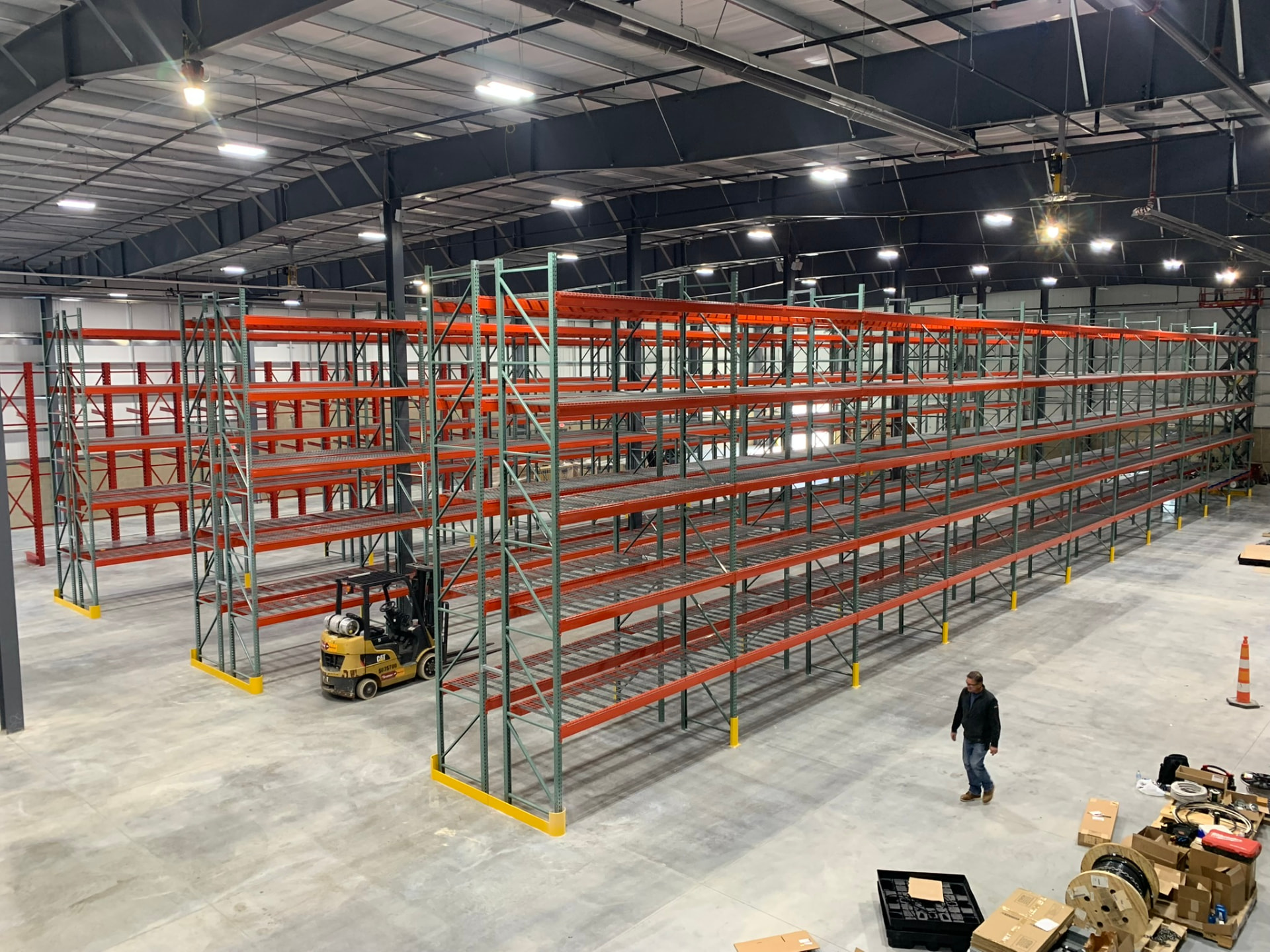

Selective Pallet Rack

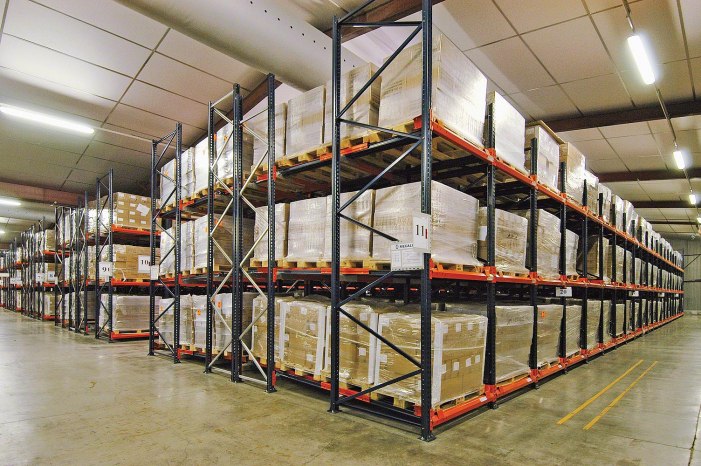

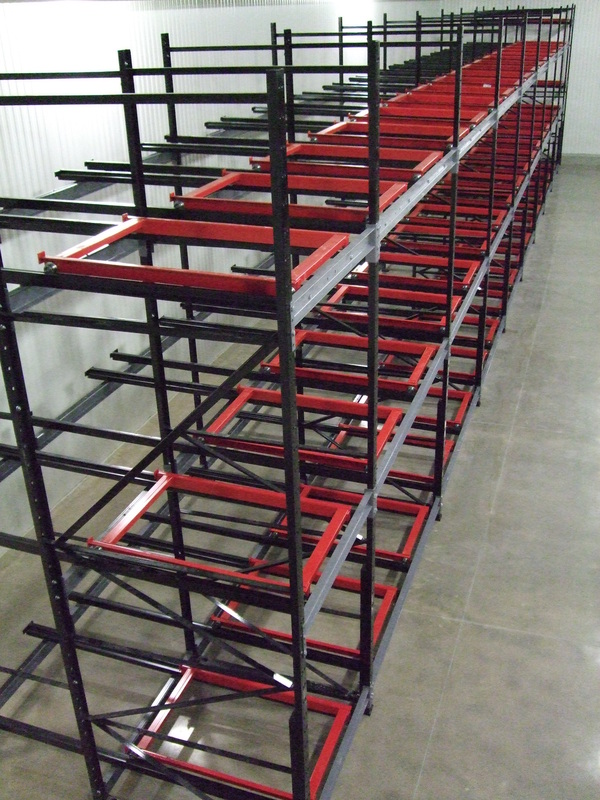

Push Back Pallet Rack

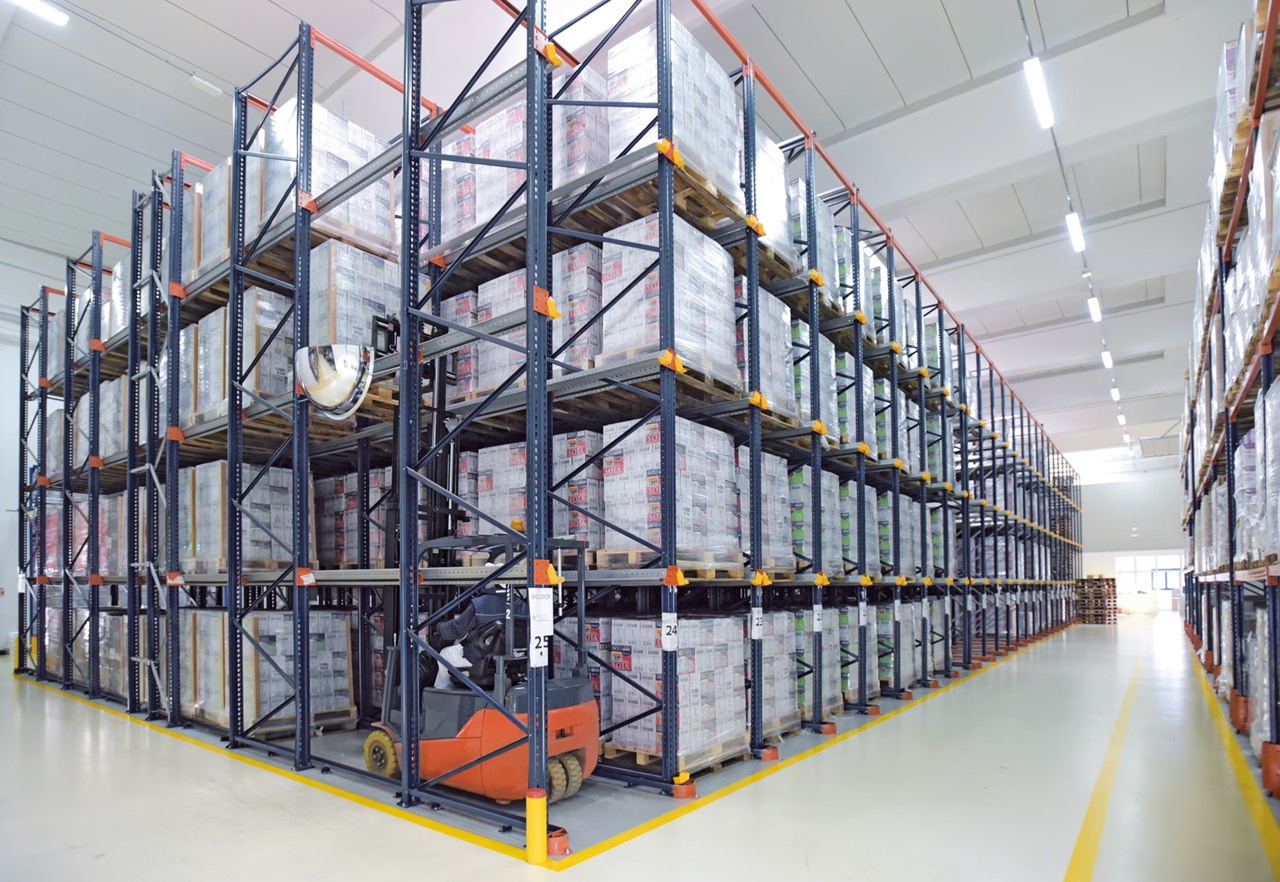

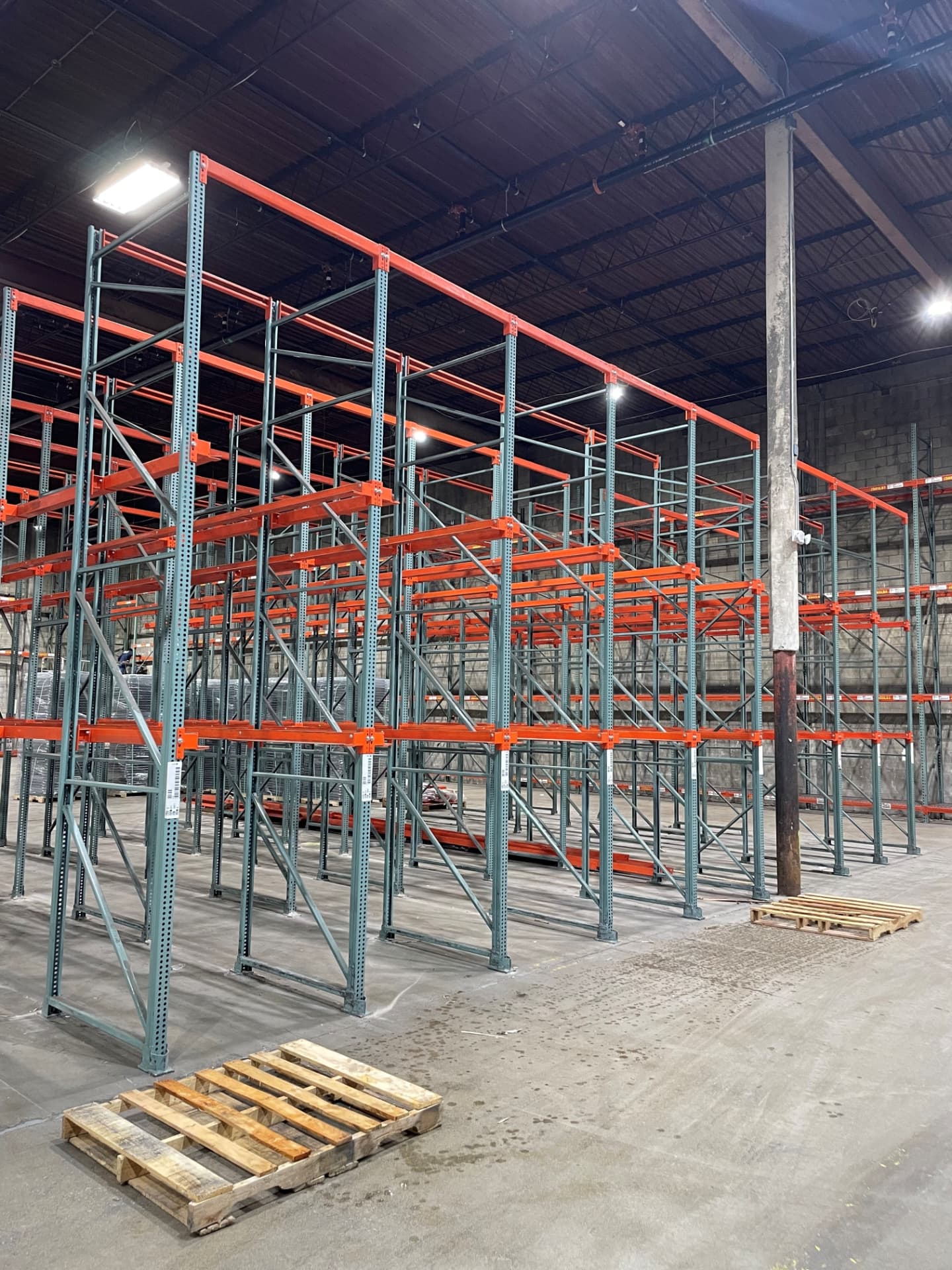

Drive-In Pallet Rack

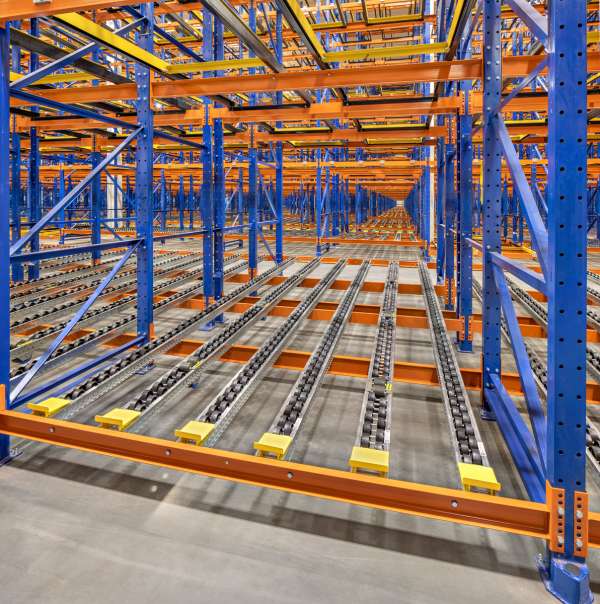

Pallet Flow Rack

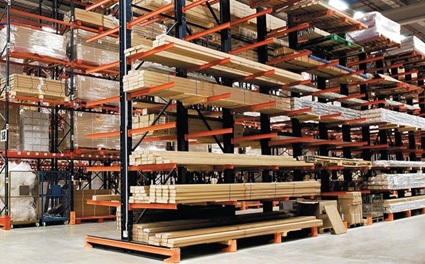

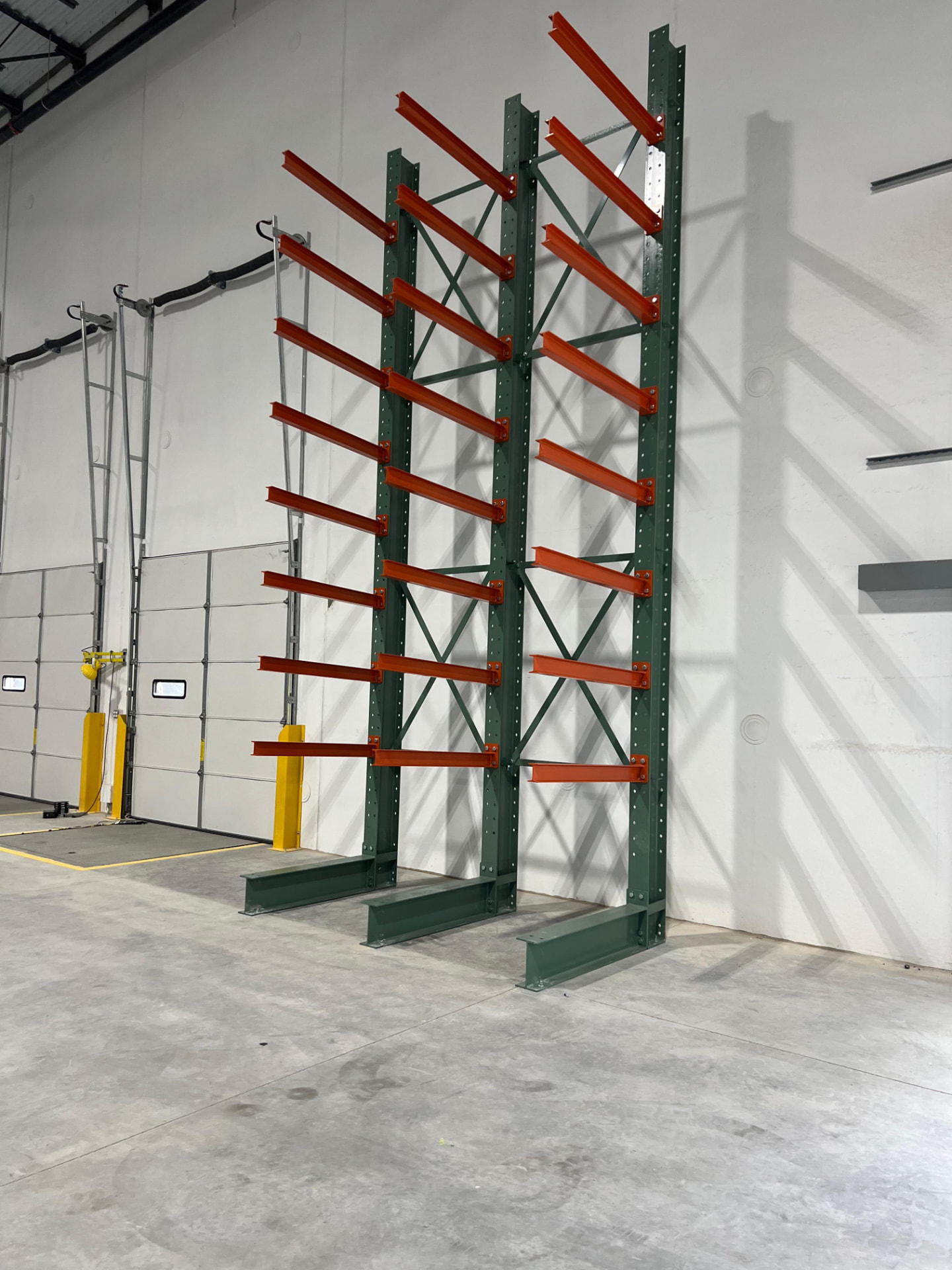

Cantilever Rack

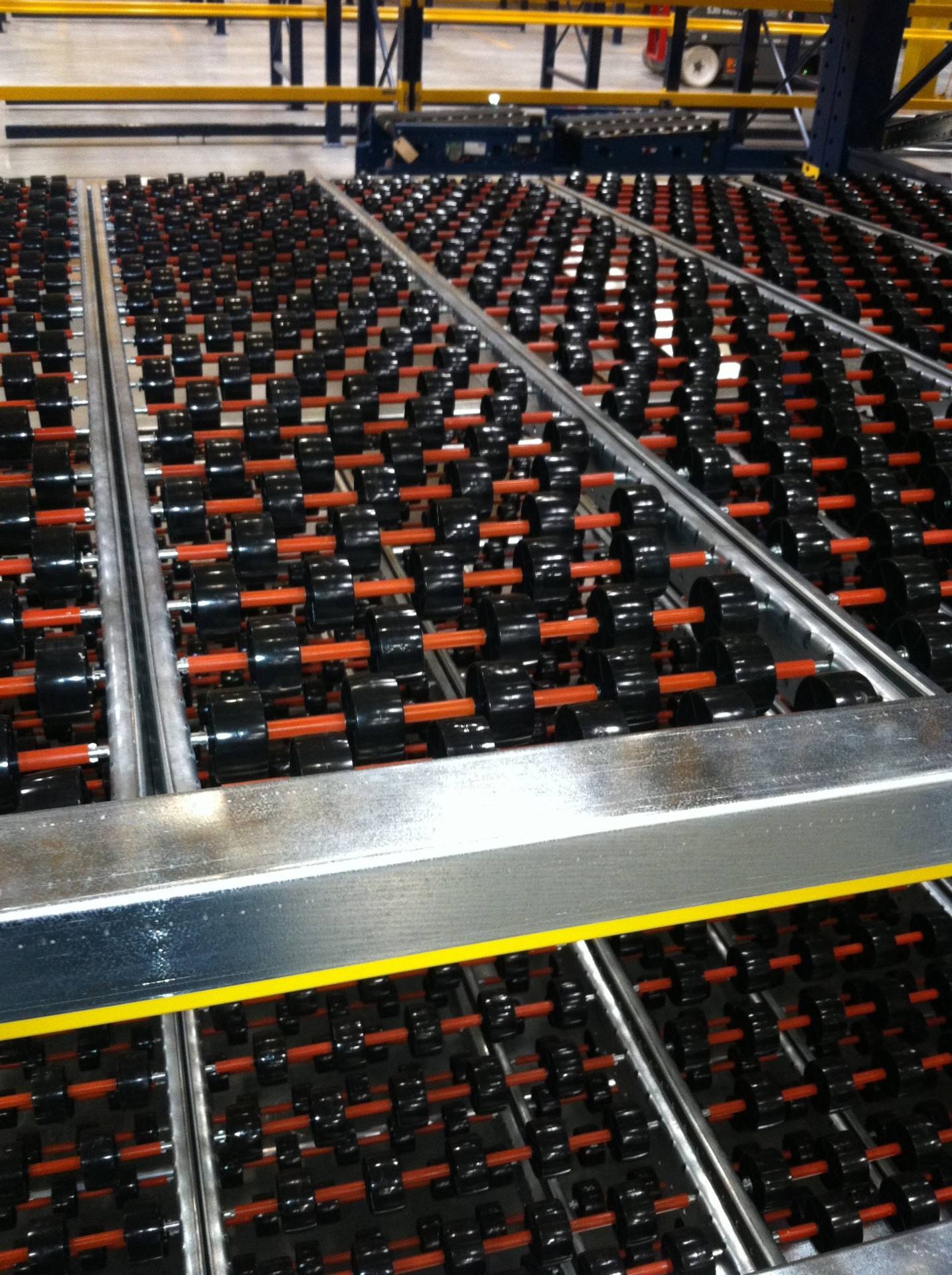

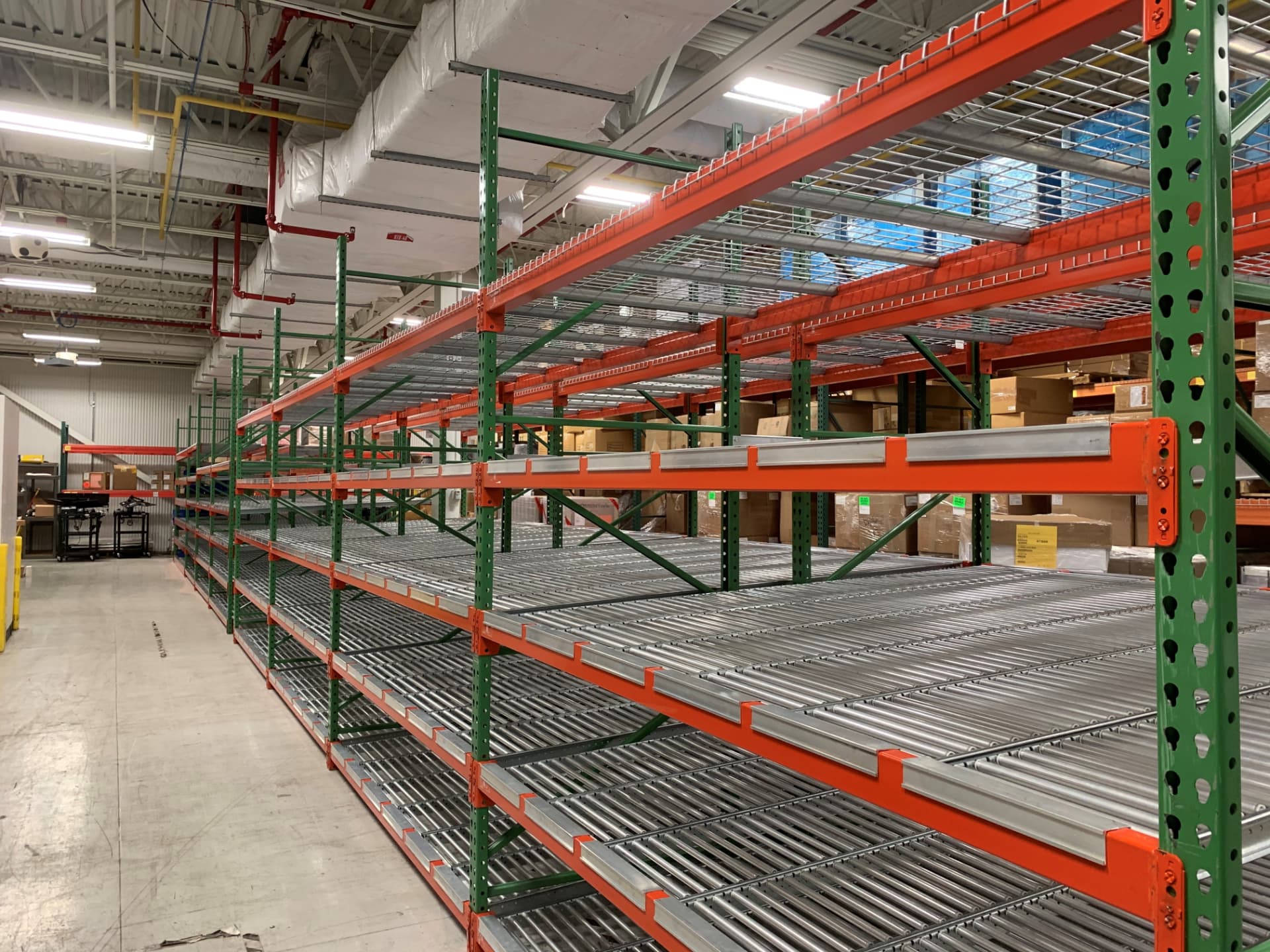

Carton Flow Rack

Complete Warehouse Storage Solutions

Free Warehouse Design

Space Optimization

Fast Delivery

Professional Installation

Exceptional Service

Load Capacity Documentation

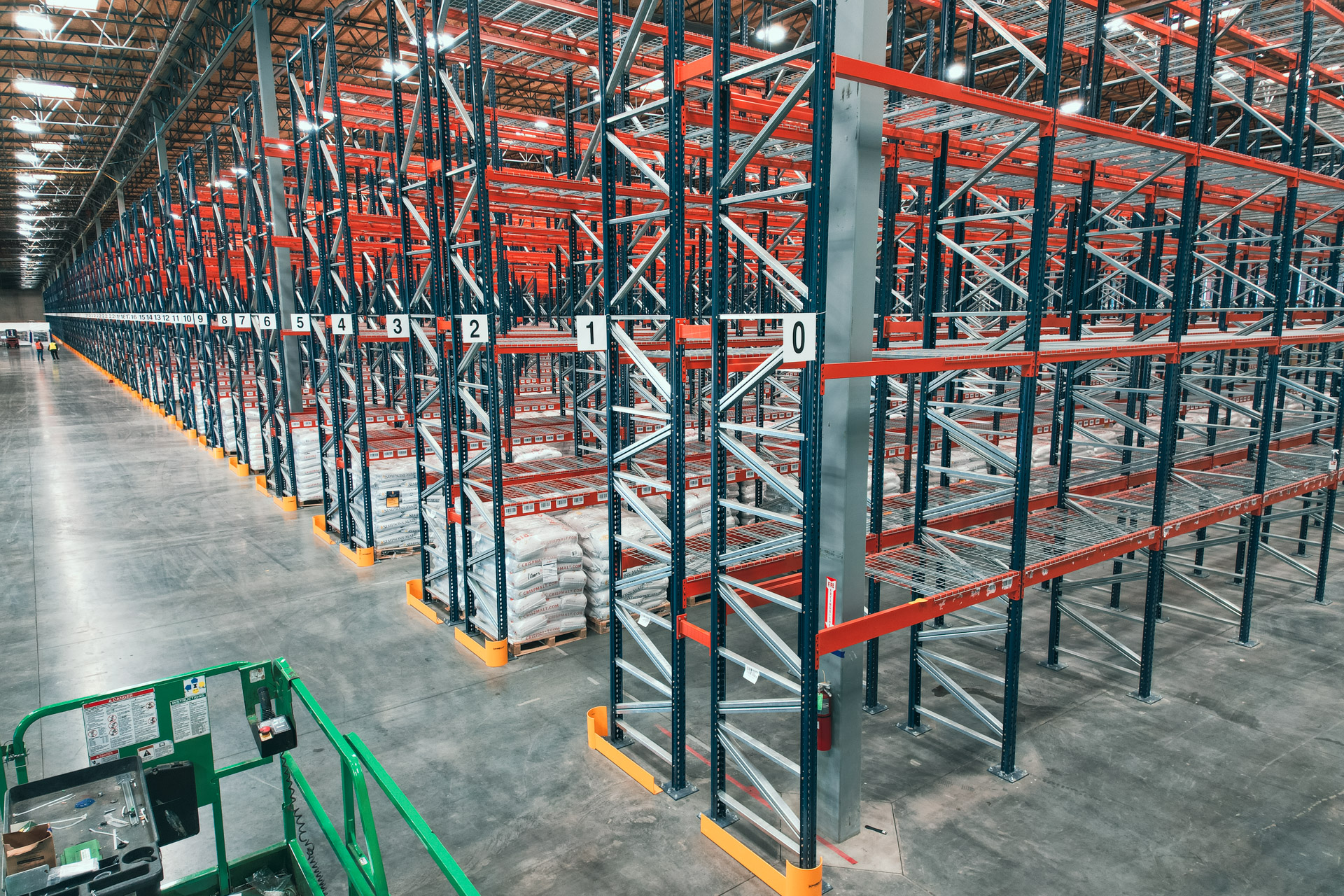

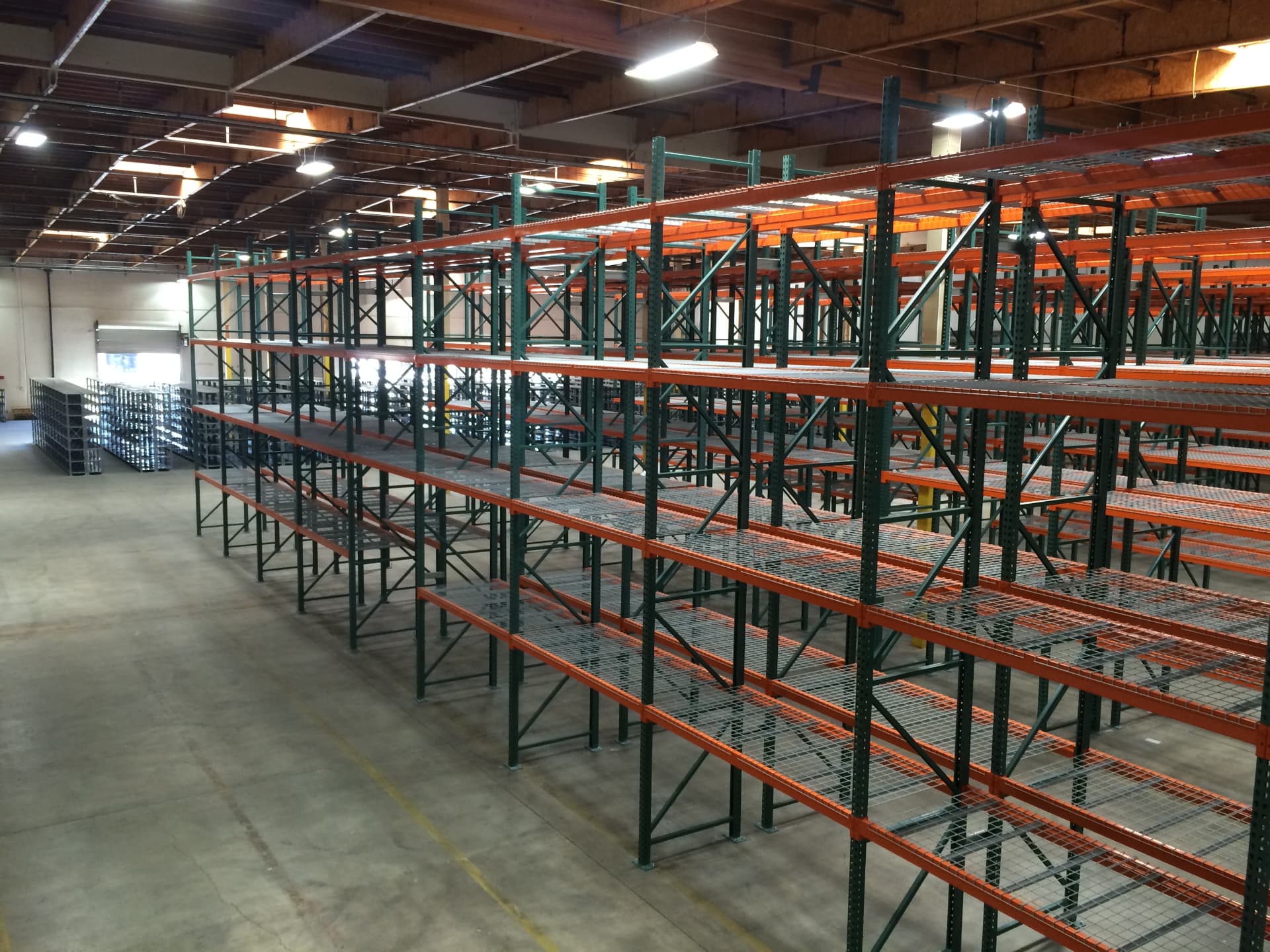

Recent Pallet Rack Projects
